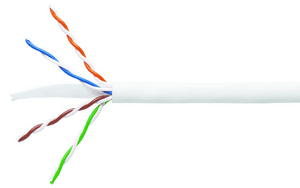

SYSTIMAX GigaREACH XL Cat6 U/UTP Indoor LSZH Cable 1000ft White (3073A)

CommScope SYSTIMAX · Part no. 760258512 · ANSI/TIA Category: 6 · Copper Cables & Accessories · Available in Singapore from AmberWork Source.

GigaREACH™ XL 3073A Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel Key specifications: ANSI/TIA Category: 6. Cable Type: U/UTP (unshielded). Conductor Gauge: 21 AWG. Jacket Material: Low Smoke Zero Halogen (LSZH). Transmission Standards: ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E. Remote Powering: Fully complies with IEEE 802.3bt (Type 4). Extended Distance: Supports 1 Gbps/90 W up to 150 m, 100 Mbps/90 W up to 200 m, 10 Mbps/90 W up to 250 m. Available from AmberWork Source with full manufacturer warranty and Singapore-based stock support.

Specifications

Product Number	3073A
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Separator Type	Isolator \| Tape separator
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E
Cable Length	304.8 m \| 1000 ft
Diameter Over Jacket, nominal	6.782 mm \| 0.267 in
Jacket Thickness	0.635 mm \| 0.025 in
Conductor Gauge, singles	21 AWG
Insertion Loss Margin	20% to Category 6 standard
Characteristic Impedance	100 ohm
dc Resistance, maximum	4.69 ohms/100 m \| 1.43 ohms/100 ft
Operating Frequency, maximum	250 MHz
Conductor Material	Bare copper
Jacket Material	Low Smoke Zero Halogen (LSZH)
