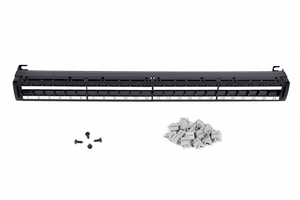

SYSTIMAX M4800 Cat6/6A 48-Port 1U Unloaded Panel
CommScope SYSTIMAX · Part no. 760105429 · ANSI/TIA Category: NA · Copper Cables & Accessories · Available in Singapore from AmberWork Source.
M4800 1U Modular Panel, 48 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), Black Key specifications: 48 ports. Rack Units: 1. Panel Style: Flat. M Series compatible — accepts MGS400 (Cat6) and MGS600 (Cat6A) jacks. DYMO labeling system compatible. Available from AmberWork Source with full manufacturer warranty and Singapore-based stock support.
Specifications
| ANSI/TIA Category | NA |
| Color | Black |
| Intelligence Type | Passive |
| Panel Style | Flat |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 48 |
| Height | 43.7 mm | 1.72 in |
| Width | 482.6 mm | 19 in |
| Depth | 53.6 mm | 2.11 in |
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Key Features
- 48-port high-density 1U panel
- Unshielded, M Series compatible
- Accepts MGS400 (Cat6) and MGS600 (Cat6A) jacks
- DYMO labeling system compatible
- Available in: Asia, Australia/New Zealand, EMEA, Latin America, North America
Downloads
Interested in this product?
Contact us for pricing, stock availability, and volume quotations.
Request a QuoteRelated Products
More from Patch Panels in Copper Cables & Accessories
SYSTIMAX M2400 Cat6/6A 24-Port 1U Unloaded Panel
Part no. 760118323
M2400 1U Modular Panel, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), Black

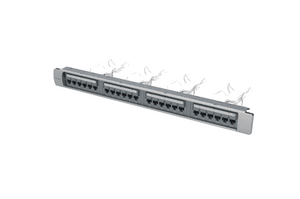

SYSTIMAX 360 EVOLVE Cat6 24-Port 1U Loaded Panel (GS3)
Part no. 760152561
SYSTIMAX 360™ GigaSPEED XL® 1100GS3 Evolve Category 6 U/UTP Patch Panel, 24 port
SYSTIMAX 360 EVOLVE Cat6A 24-Port 1U Loaded Panel (GS6)
Part no. 760152587
SYSTIMAX 360™ GigaSPEED X10D® 1100GS6 Evolve Category 6A U/UTP Patch Panel, 24 port

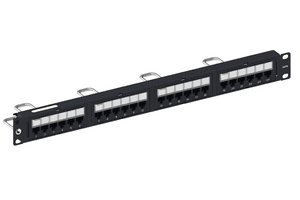

NETCONNECT Cat6 24-Port 1U Loaded Panel (NPP-6-DM)
